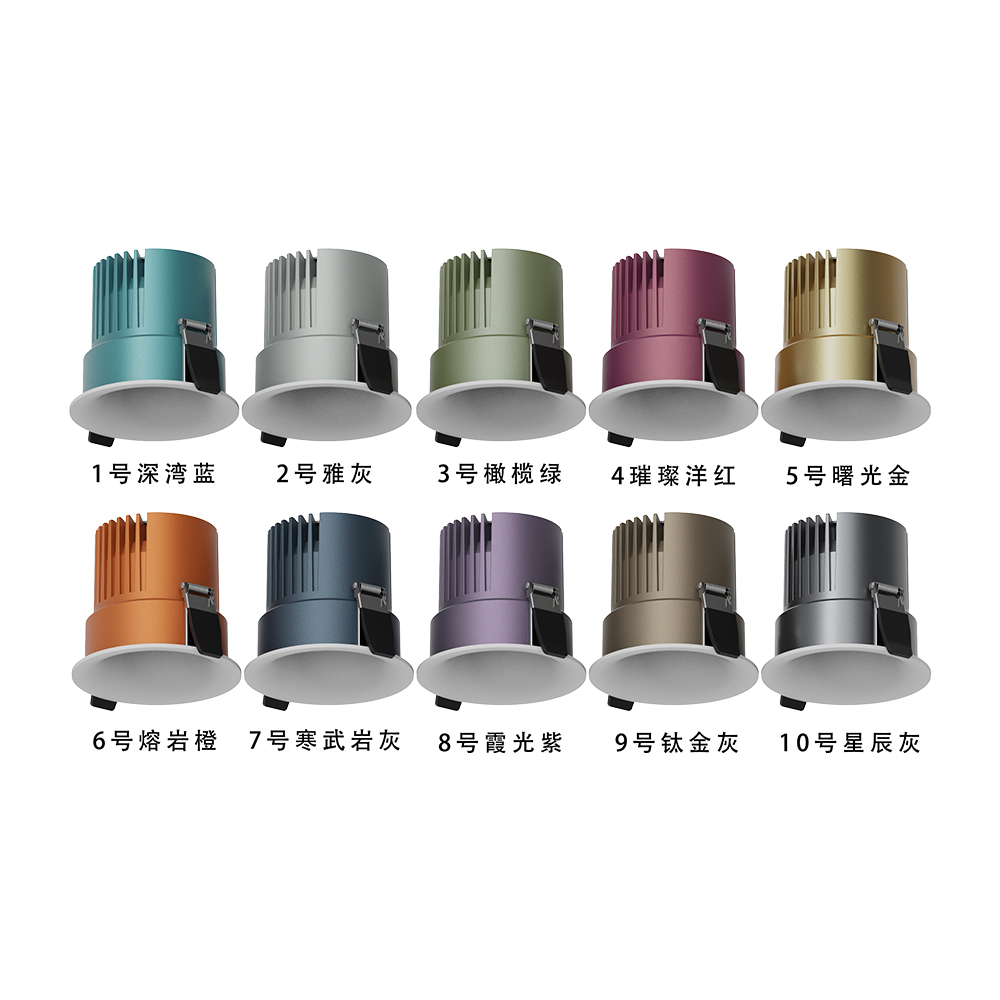

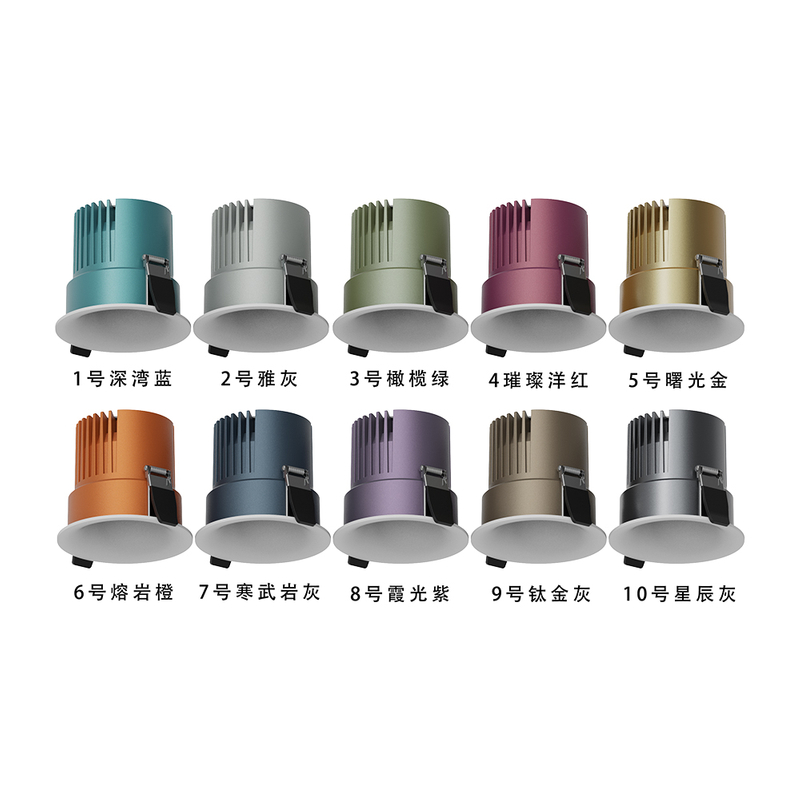

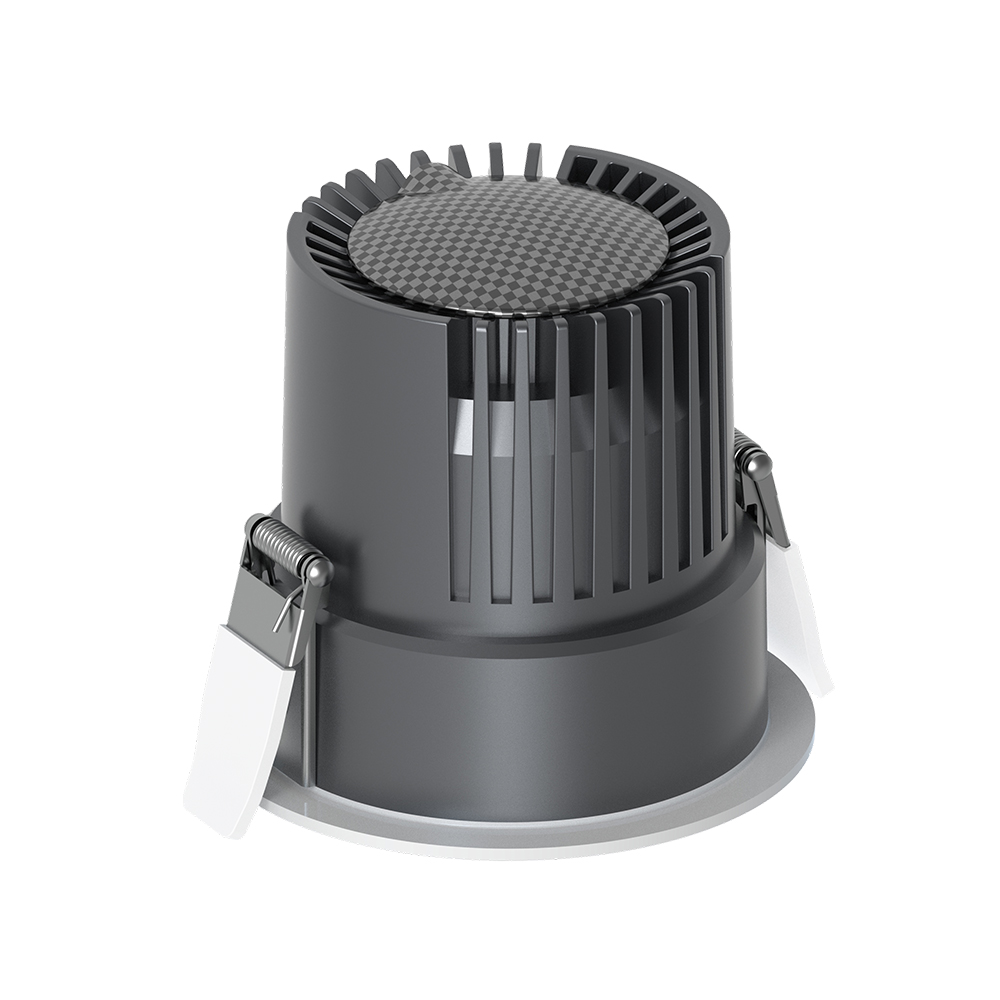

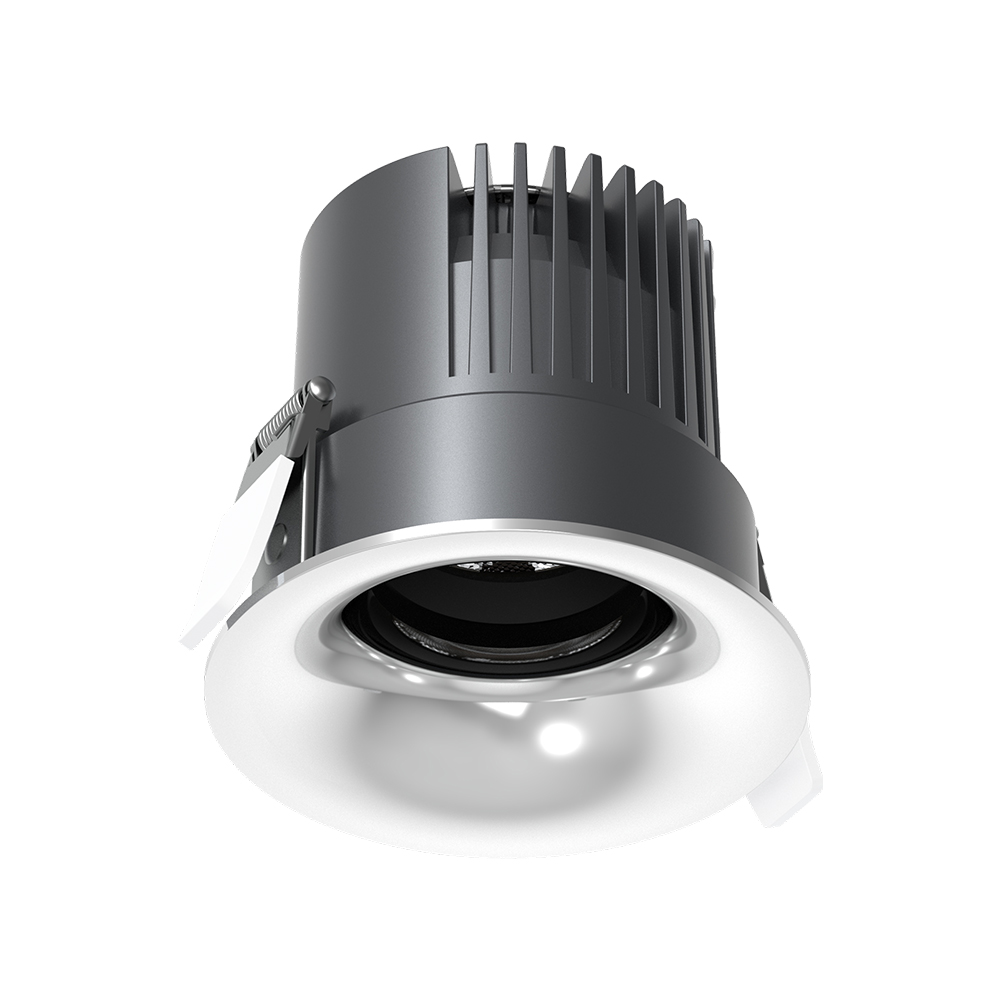

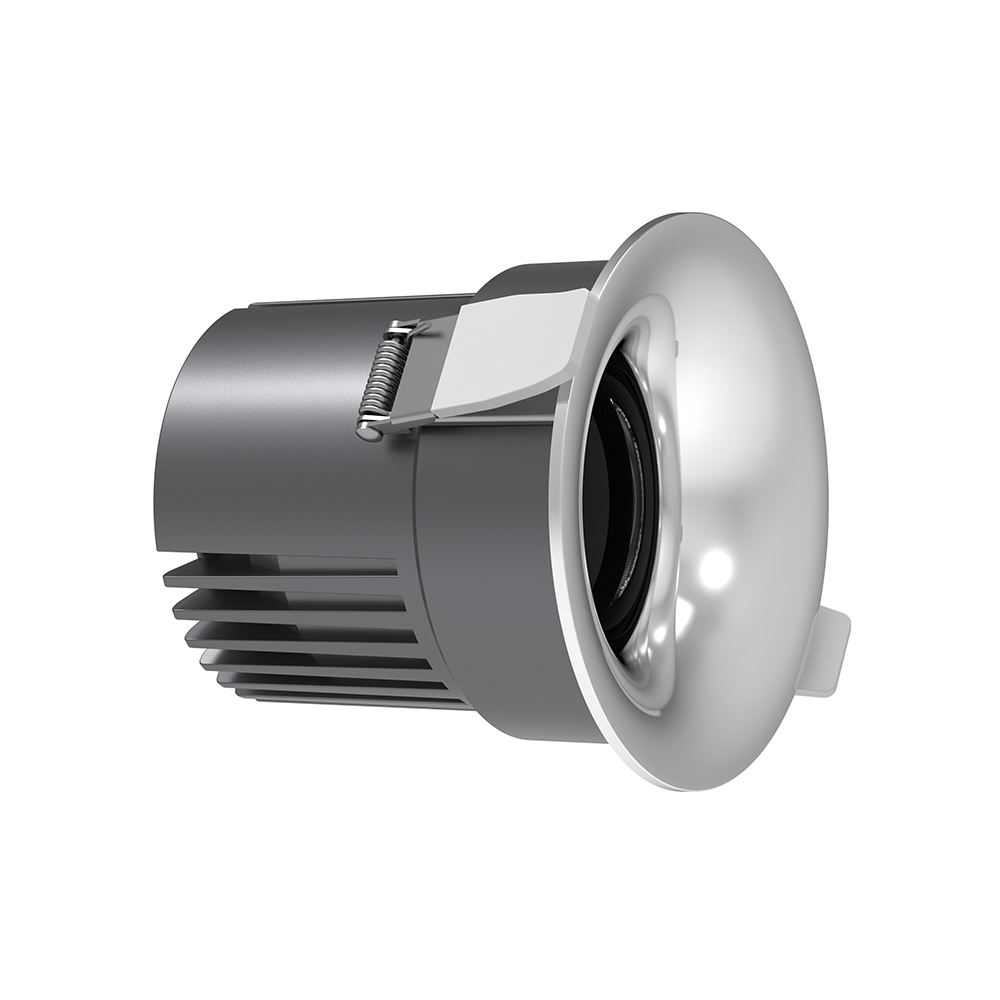

LED Down Light DS24
Quantity:
Key Features
• LM-80 certified LED as light source
• Special for recessed installation
• Optional dimming

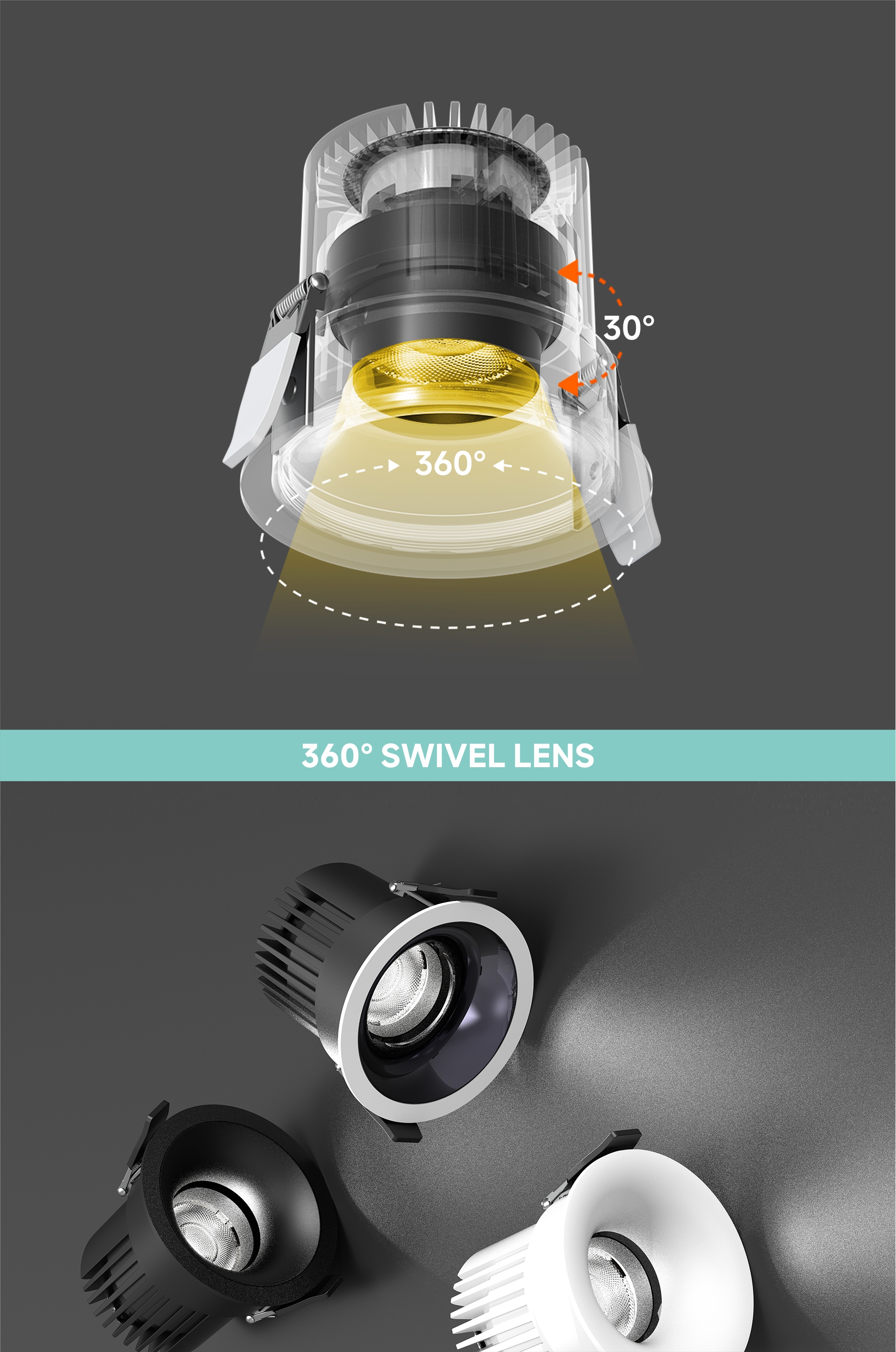

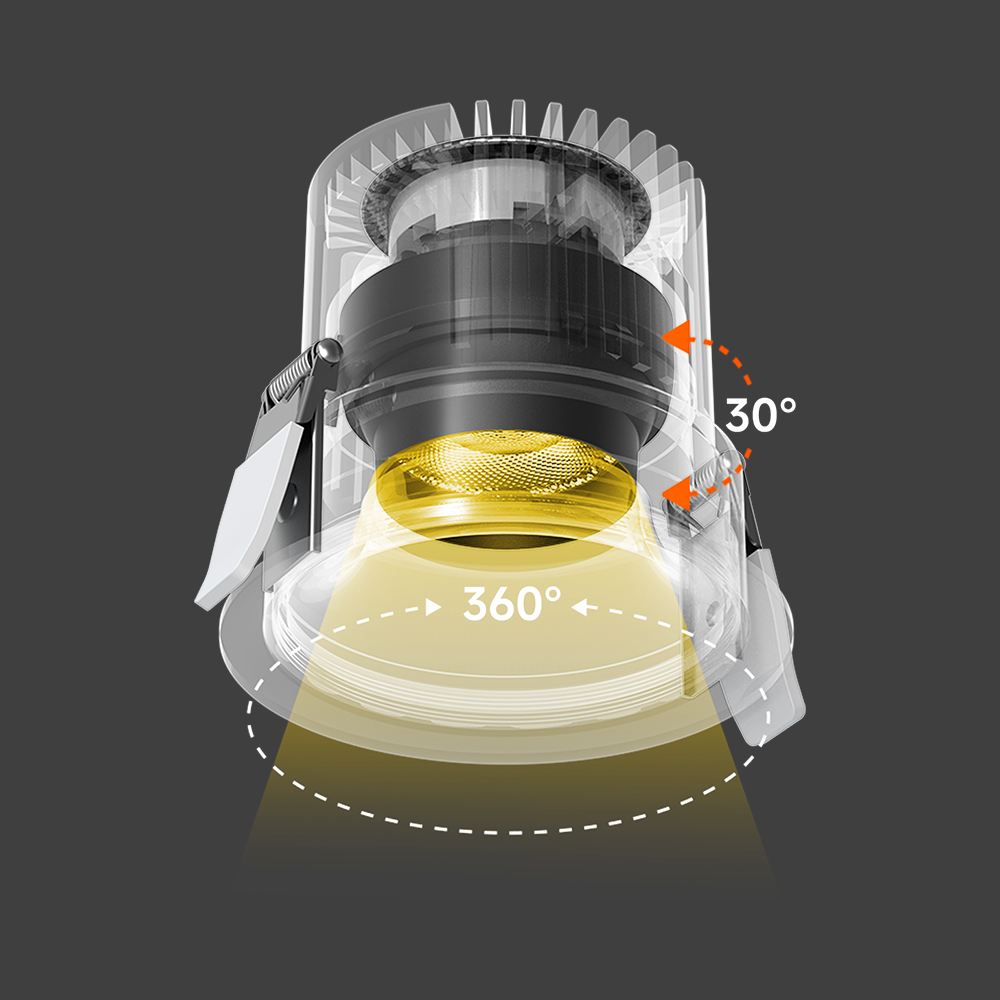

• Adjustable Angle
• Die-cast aluminum material is fully cooled and has excellent performance
Construction Features
• Housing material: Aluminum
• Even light, feel comfortable looking at the light
• Recessed with springs installation
• Recessed with springs installation
Technical Features
> Input Voltage: No Dimmable AC100-240V AC220-240V 50/60Hz
> Input Voltage: Dimmable AC100-120V AC220-240V 50/60Hz
> Total harmonic distortion: THD<20%
> Power Factor: PF>0.90
> Color Index: Ra≥80
> Lumens maintenance @6000h: >80%
> Switching cycle before failure: 100,000
> Life Span: 50,000 hours
> Warranty: 2/3/5 years
> Operation Temperature: -25℃~+55℃
> Storage Temperature:-25℃~+55℃
Application
> offices, schools, hospitals, Libraries

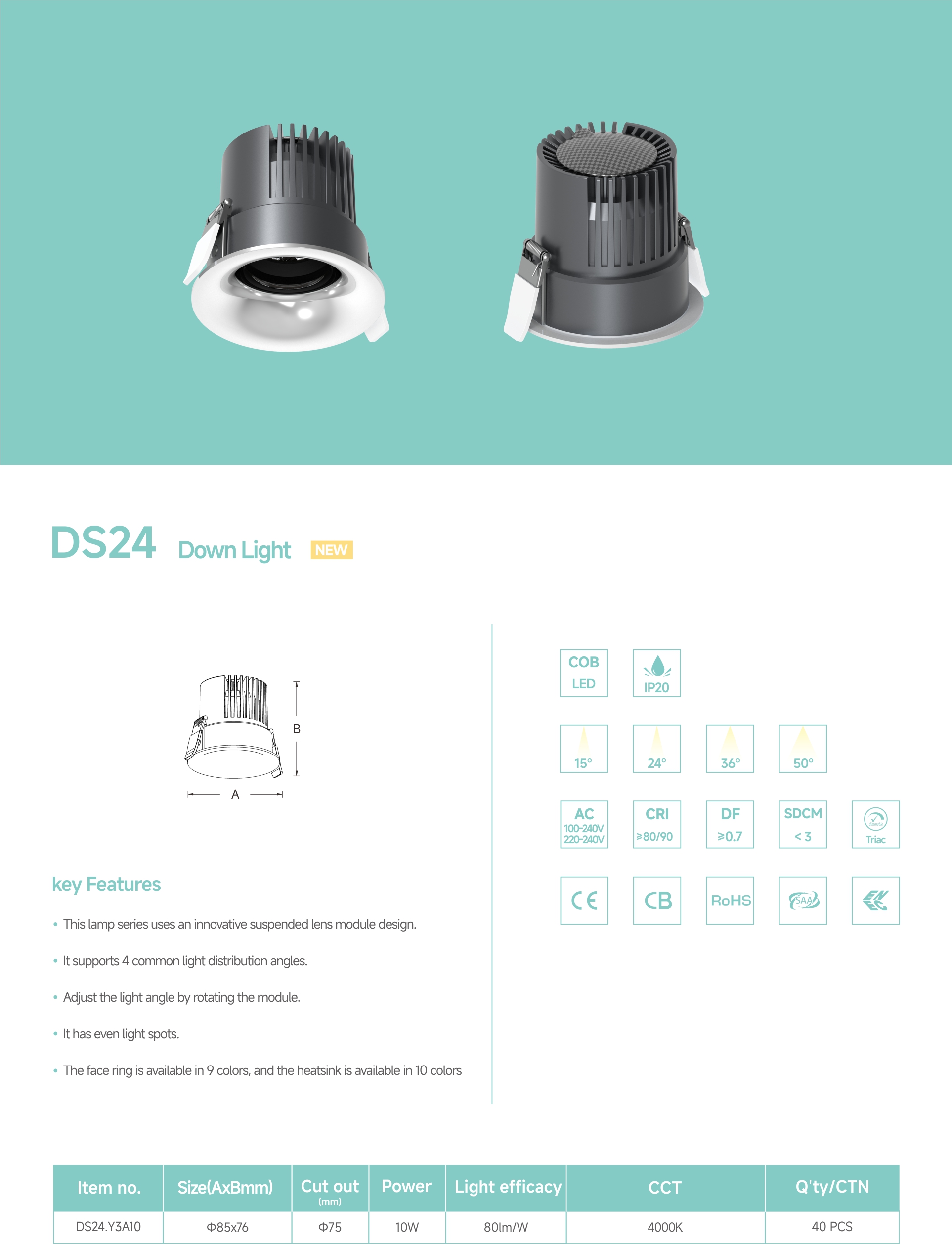

DATA SHEET
DS24-A
ltem no.
Size
Cut out
Power
Light efficacy
Beam angle
CCT
C.DS24.F2A5
70x70x65mm
60x60mm
5W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F3A10
92x92x71mm
75x75mm
10W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F4A25
120x120x99mm
100x100mm
25W
100lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F5A30
140x140x123mm
120x120mm
30W
100lm/W
15° / 24° / 38°
2700-6500K
DS24-B
ltem no.
Size
Cut out
Power
Light efficacy
Beam angle
CCT
C.DS24.F4B10
140X70X65mm
125x60mm
2x5W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F5B14
172x92x71mm
155x75mm
2x7W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F6B50
230x120x99mm
205x100mm
2x25W
100lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F8B60
270x270x123mm
250x120mm
2x30W
100lm/W
15° / 24° / 38°
2700-6500K
DS24-C
ltem no.
Size
Cut out
Power
Light efficacy
Beam angle
CCT
C.DS24.F5C15
210x70x65mm
195x60mm
3x5W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F6C21
252x92x71mm
245x75mm
3x7W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F7C75
333x120x99mm
310x100mm
3x25W
100lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F9C90
400x140x123mm
380X120mm
3x30W
100lm/W
15° / 24° / 38°
2700-6500K
DS24-D
ltem no.
Size
Cut out
Power
Light efficacy
Beam angle
CCT
C.DS24.F5D20
140x140x80mm
130x130mm
4x5W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F6D28
172x172x80mm
160x160mm
4x7W
80lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F8D100
230x230x80mm
220x220mm
4x25W
100lm/W
15° / 24° / 38°
2700-6500K
C.DS24.F9D120
270x270x95mm
260x260mm
4x30W
100lm/W
15° / 24° / 38°
2700-6500K
